NUZHUO 10TPD NZDO-300 Air Separation Plant Liquid Oxygen Plant Medical Oxygen Plant

Short Description:

1. Air Compressor: Air is compressed at a low pressure of 5-7 bar (0.5-0.7mpa)

2. Pre Cooling System: Cooling the temperature of air to around 12 deg C.

3. Purification of Air By Purifier: Twin molecular Sieve driers

4. Cryogenic Cooling of Air by Expander: Turbo expander cools the temperature of air below -165 to-170 deg C.

5. Separation of Liquid Air into Oxygen and Nitrogen by Air Separation Column

6. Liquid Oxygen/Nitrogen is stored in a Liquid Storage Tank

Brand: NUZHUO

Certification: CE, ISO9001, ISO13485, TUV, SGS Certificate Approved

After-Sale Service: Lifetime tech support & Dispatch Engineer & Video Meeting

Warranty: 1 Year, lifetime technology support

Salient Features: Nice Quality, Nice Price, Easy Operation, Easy Maintenance

Service: OEM & ODM Support

NUZHUO Supply: Oxygen concentrator, PSA oxygen generator, PSA nitrogen generator, Cryogenic ASU plant, Liquid Nitrogen & Oxygen Generator, Booster Compressor

Advantage : 20 Years manufacturing and exporting experience

Send email to us

Product Detail

Company Profile

FAQ

Product Tags

Description for the Air Separation Unit :

Model	NZDON-50/50	NZDON-80/160	NZDON-180/300	NZDON-260/500	NZDON-350/700	NZDON-550/1000	NZDON-750/1500	NZDON-1200/2000/0y
O2 0utput (Nm3/h)	50	80	180	260	350	550	750	1200
O2 Purity (%O2)	≥99.6	≥99.6	≥99.6	≥99.6	≥99.6	≥99.6	≥99.6	≥99.6
N2 0utput (Nm3/h)	50	160	300	500	700	1000	1500	2000
N2 Purity (PPm O2)	9.5	≤10	≤10	≤10	≤10	≤10	≤10	≤10
Liquid Argon Ouput ( Nm3/h)	——	——	——	——	——	——	——	30
Liquid Argon Purity ( Ppm O2 + PPm N2)	——	——	——	——	——	——	——	≤1.5ppmO2 + 4 p p mN2
Liquid Argon Purity ( Ppm O2 + PPm N2)	——	——	——	——	——	——	——	0.2
Consumption (Kwh/Nm3 O2)	≤1.3	≤0.85	≤0.68	≤0.68	≤0.65	≤0.65	≤0.63	≤0.55
Occupied Area (m3)	145	150	160	180	250	420	450	800

Note: The parameters in the table are our standard products, if you need customize, pls contact our company.

Product Advantages

1. Simple installation and maintenance thanks to modular design and construction.

2. Fully automated system for simple and reliable operation.

3. Guaranteed availablity of high-purity industrial gases.

4. Guaranteed by the availability of product in liquid phase to be stored for use during any maintenance operations.

5. Low energy consumption.

6. Short time delivery.

Product Description

Air separation Unit refers to equipment which obtain oxygen,

nitrogen and argon from liquid air at low temperature by

difference of each component boiling point.

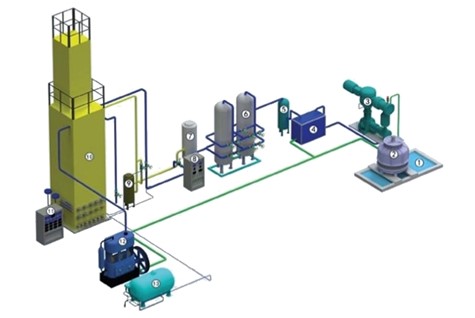

1：Air Compressor(piston or oil-free)

2：Air Refrigeration Unit

3.Air purification system

4：Air tank

5：Water separat

6：Molecular sieve purifier（PLC auto）

7：Precision filter

8：Rectification column

9：Booster turbo-expander

10：Oxygen Purity Analyser
