2021 High quality 120nm3 Cryogenic Oxygen Production Line - Cyogenic Oxygen Air Separation Plant Medical Oxgen Generator Plant Medical Oxgen Generator Plant – Nuzhuo
2021 High quality 120nm3 Cryogenic Oxygen Production Line - Cyogenic Oxygen Air Separation Plant Medical Oxgen Generator Plant Medical Oxgen Generator Plant – Nuzhuo Detail:
|
Product Name |
Cryogenic air separation equipment |
|
Model No. |
NZDON- 5/10/20/40/60/80/CUSTOMIZED |
|
Brand |
NuZhuo |
|
Accessories |
Air compressor & Re- cooling system & Expander |
|
Usage |
High purity Oxygen & Nitrogen & Argon production machine |
|
Model |
NZDON-50/50 |
NZDON-80/160 |
NZDON-180/300 |
NZDON-260/500 |
NZDON-350/700 |
NZDON-550/1000 |
NZDON-750/1500 |
NZDON-1200/2000/0y |
|
O2 0utput (Nm3/h) |
50 |
80 |
180 |
260 |
350 |
550 |
750 |
1200 |
|
O2 Purity (%O2) |
≥99.6 |
≥99.6 |
≥99.6 |
≥99.6 |
≥99.6 |
≥99.6 |
≥99.6 |
≥99.6 |
|
N2 0utput (Nm3/h) |
50 |
160 |
300 |
500 |
700 |
1000 |
1500 |
2000 |
|
N2 Purity (PPm O2) |
9.5 |
≤10 |
≤10 |
≤10 |
≤10 |
≤10 |
≤10 |
≤10 |
|
Liquid Argon Ouput ( Nm3/h) |
—— |
—— |
—— |
—— |
—— |
—— |
—— |
30 |
|
Liquid Argon Purity ( Ppm O2 + PPm N2) |
—— |
—— |
—— |
—— |
—— |
—— |
—— |
≤1.5ppmO2 + 4 p p mN2 |
|
Liquid Argon Purity ( Ppm O2 + PPm N2) |
—— |
—— |
—— |
—— |
—— |
—— |
—— |
0.2 |
|
Consumption (Kwh/Nm3 O2) |
≤1.3 |
≤0.85 |
≤0.68 |
≤0.68 |
≤0.65 |
≤0.65 |
≤0.63 |
≤0.55 |
|
Occupied Area (m3) |
145 |
150 |
160 |
180 |
250 |
420 |
450 |
800 |
Air compressor systemImported centrifugal air compressor, high efficiency, low consumption, stable and reliable operation, can choose imported Atlas brand |
| Air Refrigerated unitThe original imported screw refrigeration compressor and the air-conditioning unit combined with all imported refrigeration components are equipped with a water separator, manual and imported automatic drains to drain water regularly.
|
| Air purification systemThe purifier adopts a vertical single-layer bed with simple and reliable structure and low resistance loss; built-in filter, blowing off and purifier regeneration at the same time. High-efficiency electric heater to ensure complete regeneration of molecular sieve
|

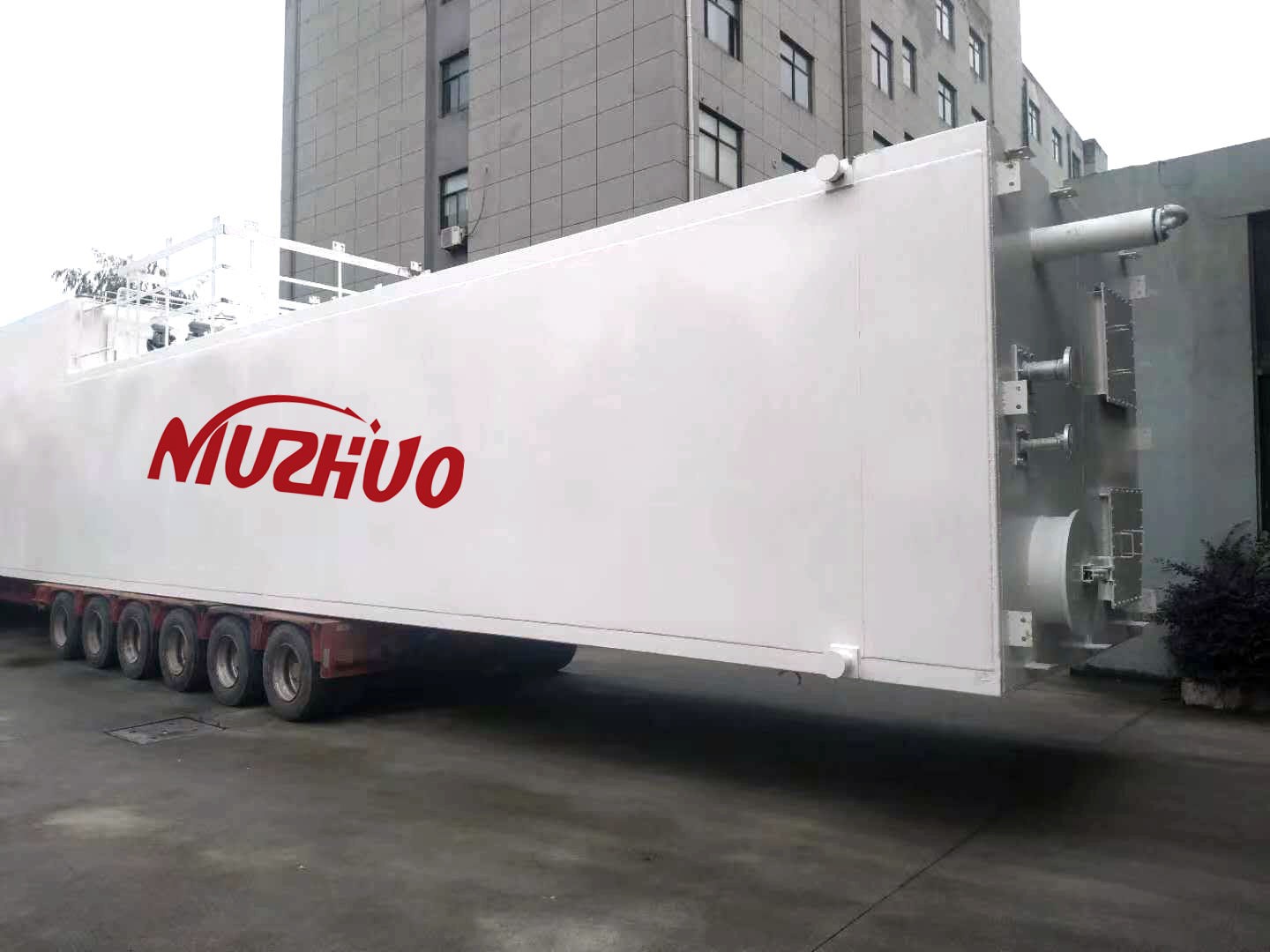

Fractionator system (cold box)The heating, cooling, liquid accumulation and purification of the fractionation tower can be completed in one go, and the operation is simple, quick and simple. Adopt aluminum plate-fin heat exchanger, aluminum convection sieve plate tower, the entire fractionation tower equipment pipeline adopts argon arc welding, the tower body and main pipeline in the cold box are made of high-strength aluminum alloy or stainless steel to increase the strength , Reduce the torsion damage of the pipeline. The equipment brackets, pipes and valve brackets in the cold box shall be made of stainless steel or aluminum alloy. The cold box is insulated with pearl sand and slag wool to ensure that the loss of cold capacity is minimized. The cold box structure guarantees the overall strength and requirements of seismic and wind resistance, and guarantees the load-bearing capacity of the cold box. When the cold box is running, it is equipped with airtight protection and safety devices. The main equipment in the cold box is equipped with electrostatic grounding. The cold valve and pipeline in the cold box All connections are welded, and flange connections are avoided.  |
| Turbo ExpanderThe turbo expander adopts gas bearing, which is simple and reliable, easy to operate, and high isentropic efficiency. The cold box of the expander is set separately for easy maintenance.
|
| O2, N2, Ar compression pressurizing filling systemSingle gas production: internal compression process (low temperature liquid pump, high pressure vaporizer, filling row)Multi-gas production: external compression process (oxygen & nitrogen & argon booster, filling row) |
| Instrument and Electric Control SystemSiemens imported brand, fully automatic production system, digital control system |
| Equipment layout drawing (according to civil engineering design), process piping design drawings, instrument electrical design drawings, etc. |
IF YOU HAVE ANY INTERSTS TO KNOW MORE INFORMATION, CONTACT US: 0086-18069835230
Product detail pictures:
