[Hangzhou, China] With the growing demand for high-purity oxygen in healthcare, aquaculture, chemical refining, and high-altitude oxygen bars, pressure swing adsorption (PSA) oxygen concentrators, owing to their convenience, affordability, and safety, have become a mainstream choice in the market. However, faced with a wide variety of products on the market, how can users choose the “optimal configuration” that best suits their needs? Today, a team of technical experts from Nuzhuo Group, a leading global gas solutions provider, will provide an in-depth analysis of the components of the optimal PSA oxygen concentrator configuration and the key factors influencing it.

A Nuzhuo Group spokesperson stated, “The ‘optimal configuration’ is not a fixed standard, but rather a customized solution that is highly dependent on the user’s specific application scenario. Our goal is to work closely with our customers to find the optimal balance between performance, cost, and long-term operational efficiency.”

I. What is the “optimal configuration” of a PSA oxygen concentrator?

An optimally configured PSA oxygen concentrator should possess four core characteristics: stable operation, minimal energy consumption, long life, and easy maintenance. Its configuration primarily encompasses the following subsystems:

1. Core Adsorption System:

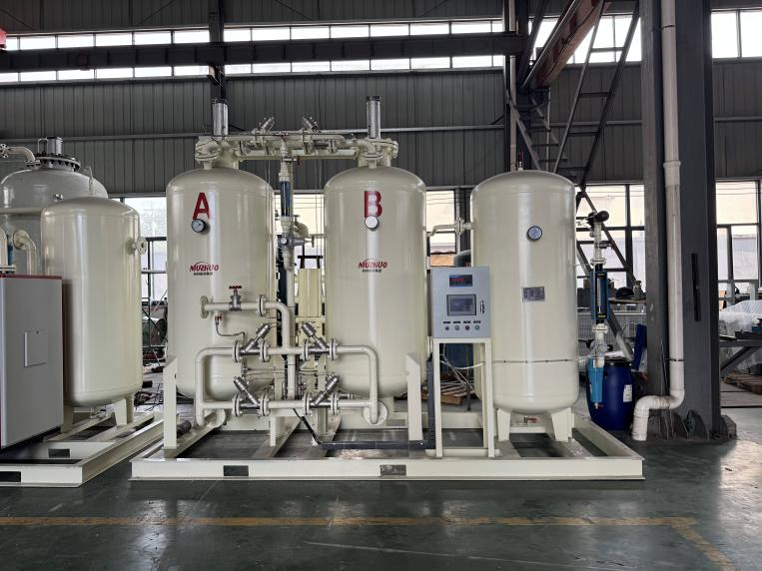

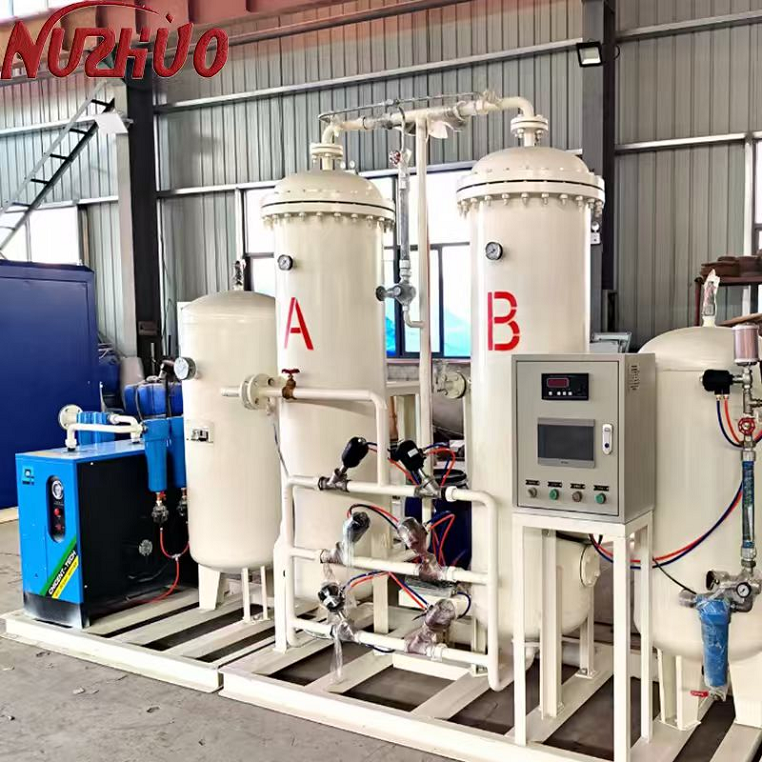

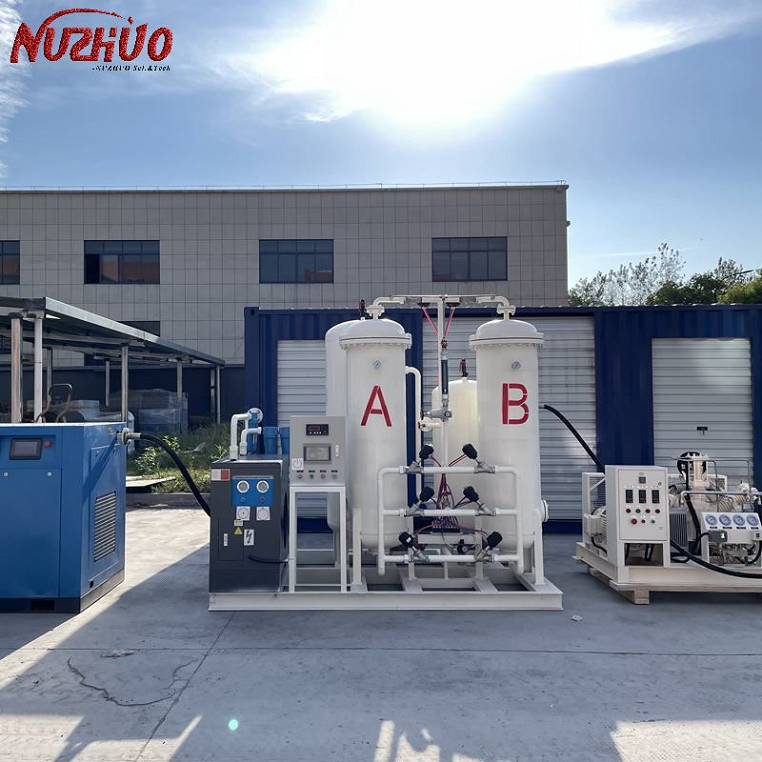

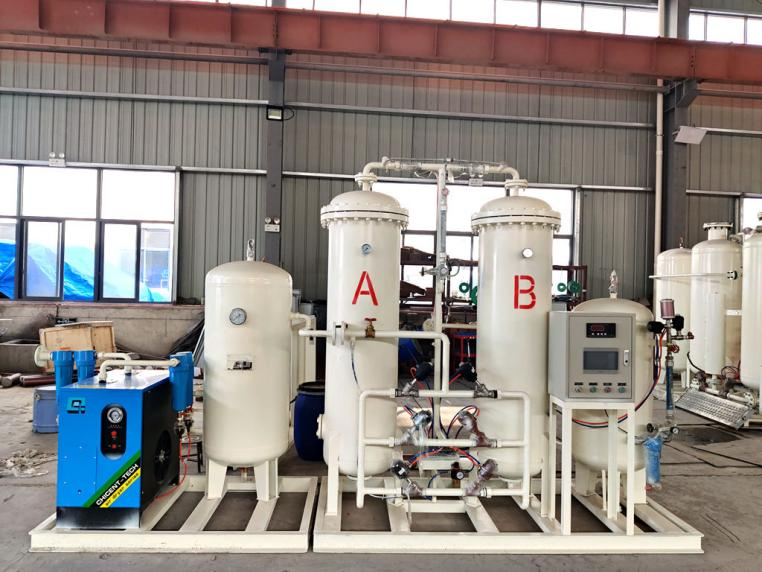

1.1 Adsorption Tower Design and Molecular Sieve: This is the “heart” of the oxygen concentrator. Nuzhuo Group utilizes a dual-tower or multi-tower process design to ensure continuous and stable oxygen output. The selection of high-performance lithium-based molecular sieves is crucial. Their adsorption capacity, selectivity, and wear resistance directly determine oxygen purity (up to 93% ± 3%) and the lifespan of the equipment.

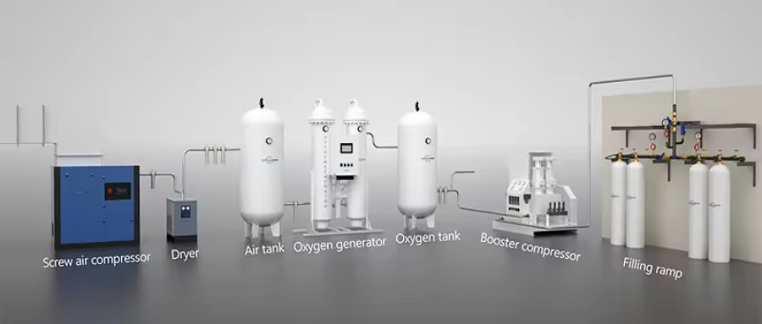

2. Air Compression and Purification System:

2.1 Air Compressor: As the “power source,” its stability and energy efficiency are crucial. Nuzhuo Group precisely matches oil-free air compressors based on oxygen output (e.g., 5L/min, 10L/min, etc.). This fundamentally eliminates oil contamination of the molecular sieve, ensuring pure oxygen while significantly reducing noise and maintenance frequency.

2.2 Air Pretreatment (Refrigerated Dryer, Filter): This serves as the “immune system” protecting the molecular sieve. High-efficiency filters can remove dust, moisture, and trace oil vapor from the air, preventing molecular sieve poisoning and failure. They are essential investments to ensure the long-term stable operation of the equipment.

3. Control and Intelligent Systems:

3.1 Control System: Nuzhuo Group utilizes a PLC (Programmable Logic Controller) or microcomputer intelligent control system, enabling one-touch start and stop, as well as real-time monitoring and alarming of pressure, flow, and purity. Advanced automatic pressure relief and fault diagnosis functions maximize equipment safety and reduce the need for operator expertise.

II. Key Factors Affecting PSA Oxygen Concentrator Performance and Configuration Selection

Nuzhuo Group emphasizes that the following five factors must be comprehensively considered when selecting a configuration:

1. End-use Application (Primary Factor):

1.1 Medical Applications: These applications require extremely high oxygen purity (typically ≥90%), equipment reliability, and quiet operation. The configuration should prioritize medical-grade certified oil-free air compressors, multi-stage precision filtration systems, and redundant safety features.

1.2 Industrial Applications (such as ozone generators, welding and cutting): Focus on gas production and long-term operational stability, with relatively flexible requirements for purity. Configurations may prioritize high-power air compressors and rugged, industrial-grade construction.

1.3 Aquaculture: Humid environments require equipment with corrosion resistance and robustness in harsh environments.

2. Required Oxygen Flow Rate and Purity:

The higher the flow rate, the greater the required compressor power, adsorption tower volume, and molecular sieve loading, naturally increasing costs. Higher purity requirements also place greater demands on molecular sieve performance, airflow uniformity, and control system accuracy.

3. Inlet Air Conditions:

Altitude, ambient temperature, and humidity affect the compressor’s intake efficiency and air moisture content. For example, in high-altitude areas, the compressor’s actual gas production capacity must be carefully calculated, and the dehumidification capacity of the pretreatment unit must be enhanced.

4. Energy Efficiency and Operating Costs:

The “optimal configuration” must be one with low operating costs. Nuzhuo Group significantly reduces equipment power consumption by employing high-efficiency motors, optimizing PSA cycle timing, and reducing system pressure drop, saving customers long-term costs.

5. Maintenance Ease and Lifecycle Cost:

The modular design of the equipment allows for quick replacement of faulty components, minimizing downtime. Nuzhuo Group provides remote monitoring and early warning services, and offers predictive maintenance recommendations based on equipment operating data, minimizing maintenance costs.

Summary and Recommendations:

Nuzhuo Group recommends that when purchasing a PSA oxygen concentrator, users should not only focus on the initial purchase price, but also consider the lifecycle cost. This involves in-depth discussions with suppliers like Nuzhuo, who have deep technical expertise and extensive application experience. Providing accurate information about your needs and having professional engineers tailor a truly optimal solution for you will maximize your return on investment.

About Nuzhuo Group:

Nuzhuo Group is a high-tech enterprise specializing in the research and development of advanced gas separation technologies and equipment manufacturing. Its product lines include medical and industrial PSA oxygen concentrators, nitrogen generators, and gas purification equipment. The Group has always been driven by innovation and focused on customers, and is committed to providing safe, reliable and efficient gas solutions to customers around the world.
