Cryogenic air separation technology is one of the important methods for producing high-purity nitrogen and oxygen in modern industry. This technology is widely used in various industries such as metallurgy, chemical engineering, and medicine. This article will deeply explore how cryogenic air separation produces high-purity nitrogen and oxygen, as well as the key steps and equipment involved in the process.
1. Basic principle of cryogenic air separation
Cryogenic air separation is a process that separates the main components of air by lowering the temperature. Air mainly consists of nitrogen, oxygen, and a small amount of argon. By compressing and cooling the air to an extremely low temperature, the air is liquefied, and then the different boiling points of each gas are utilized for distillation to separate nitrogen and oxygen. The boiling point of nitrogen is -195.8℃, and that of oxygen is -183℃, so they can be purified separately through staged distillation.
2. Pre-treatment stage: Air purification
In the cryogenic air separation process, air pre-treatment is a crucial first step. Air contains impurities such as dust, carbon dioxide, and moisture, which will freeze in the low-temperature environment, causing equipment blockage. Therefore, the air is first subjected to filtration, compression, and drying steps to remove impurities and moisture. Typically, dryers and molecular sieve adsorbers are important equipment used to remove impurities from the air, ensuring the stability and efficiency of the subsequent cryogenic separation process.
3. Air compression and cooling

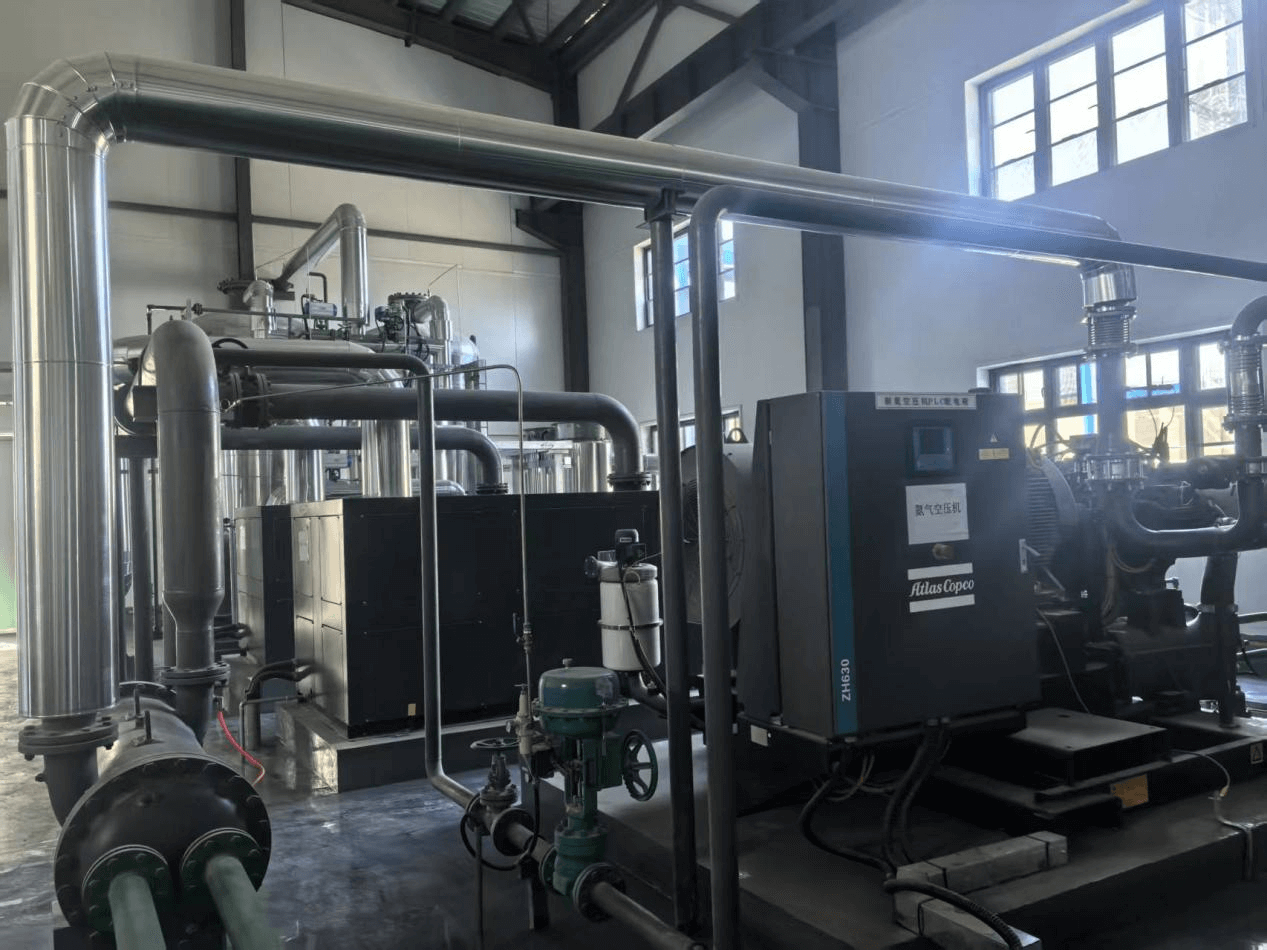

The purified air needs to be compressed, usually through multiple compressors to increase the pressure of the air to 5-6 megapascals. The compressed air is then cooled through heat exchangers with the returned gas at a low temperature, gradually reducing the temperature to approach the liquefaction point. In this process, heat exchangers play a crucial role, as they can effectively reduce energy consumption and improve cooling efficiency, ensuring that the air can be liquefied under low-temperature conditions, providing the conditions for subsequent distillation separation.
4. Air liquefaction and distillation

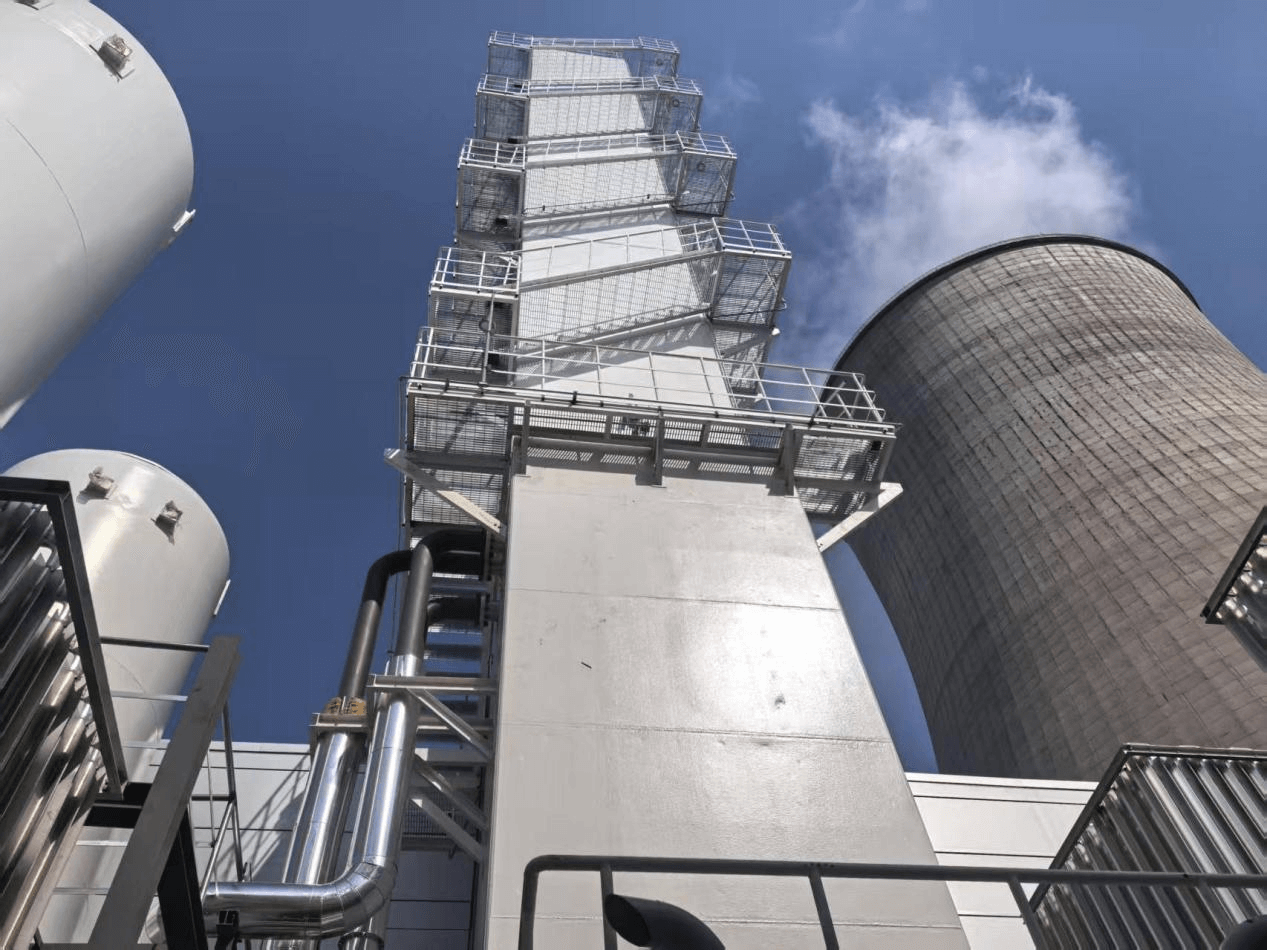

In the cryogenic separation tower, the compressed and cooled air is further cooled to a liquefied state. The liquefied air is sent to the distillation tower for separation. The distillation tower is divided into two parts: the high-pressure tower and the low-pressure tower. In the high-pressure tower, the air is separated into crude oxygen and crude nitrogen, and then the crude oxygen and crude nitrogen are further distilled in the low-pressure tower to obtain high-purity oxygen and nitrogen. The separation of nitrogen and oxygen mainly utilizes their different physical properties of boiling points, so efficient separation can be achieved in the distillation tower.
5. Purification process
The oxygen and nitrogen separated in the distillation tower still contain a small amount of impurities, so they need to be further purified to meet industrial and medical standards. The purity of nitrogen can be improved through hydrogen deoxygenation catalysts, while the purity of oxygen can be achieved through re-distillation processes. To improve the purity of the product gas, equipment such as nitrogen purifiers and oxygen purifiers are usually used, ultimately obtaining high-purity oxygen and nitrogen products.
6. Applications of nitrogen and oxygen
High-purity nitrogen and oxygen produced by cryogenic air separation technology are widely used in multiple industries. High-purity nitrogen is used in the chemical industry as a protective gas and carrier gas, in the food industry for preservation and packaging, and oxygen is widely used in the medical and welding industries. In the metallurgical industry, oxygen is also used to improve combustion efficiency and reduce carbon emissions. In these applications, the purity of the gas is the key to determining its applicability, and cryogenic air separation technology has gained wide recognition for its efficient separation and high-purity output.
7. Advantages and challenges of cryogenic air separation technology
Cryogenic air separation technology is favored in the industrial sector due to its high purity and high efficiency. However, this technology also faces some challenges, such as high energy consumption and high equipment maintenance costs. To reduce energy consumption, modern cryogenic air separation equipment usually comes with advanced energy-saving systems, such as heat recovery devices and multi-stage compression cooling systems. Furthermore, the application of automation control technology has significantly enhanced the operational efficiency and safety of deep cryogenic air separation units. Through technological optimization and equipment improvements, the energy efficiency and stability of deep cryogenic air separation systems have been continuously improved, further promoting their application in various industries.
Deep cryogenic air separation is currently one of the most effective methods for producing high-purity nitrogen and oxygen. It effectively separates and purifies oxygen and nitrogen from the air through multiple steps such as pre-treatment of air, compression, cooling, liquefaction, and distillation. Although the deep cryogenic air separation process has high energy consumption and complex equipment, its efficient separation effect and high-purity product output make this technology indispensable in multiple industries.
